How React Virtual DOM works under the Hood

If you've used React, you've probably heard that it uses a Virtual DOM to make updates fast. But what does that actually mean? What's really happening between the moment you call setState() and when the browser repaints the screen?

What problem the Virtual DOM solves

To understand Virtual DOM, you first need to understand why direct DOM manipulation is expensive.

The browser's DOM is a tree of objects representing your HTML. When JavaScript touches the DOM — querying, updating, inserting — the browser has to do a lot of internal work:

• Recalculate styles — figure out what CSS applies to the changed element

• Reflow (Layout) — recompute the geometry and position of every affected element

• Repaint — redraw the pixels on screen

• Compositing — flatten layers onto the final visible canvas

Imagine you have a list of 1,000 items and only one item changes. Naively, you might re-render the entire list. That means 1,000 DOM writes instead of 1. Virtual DOM is React's solution to this problem.

Difference between Real DOM vs Virtual DOM

Property	Real DOM	Virtual DOM
What it is	Browser's live tree of HTML nodes	Lightweight JavaScript object tree (plain JS)
Where it lives	Browser engine	JS heap — just a JavaScript object
Cost to create/clone	Expensive — triggers style calc, layout	Cheap — just allocating a JS object
Cost to update	Expensive — reflow, repaint required	Cheap — just mutating a JS object
Who manages it	Browser	React's reconciler
Purpose	Actual rendered UI	Blueprint to compute minimal real DOM changes

The Virtual DOM isn't a feature of HTML or browsers — it's a programming technique. React maintains an in-memory copy of the UI as a plain JavaScript object and syncs it with the real DOM as efficiently as possible.

What a Virtual DOM Node Actually Looks Like

When you write JSX, Babel compiles it into React.createElement() calls. Each call returns a plain JavaScript object — the Virtual DOM node (also called a React element).

// JSX you write

<div className="card">
  <h2>Hello, React!</h2>
  <p>Count: {count}</p>
</div>

//What Babel compiles it to

React.createElement(
  "div",
  { className: "card" },
  React.createElement("h2", null, "Hello, React!"),
  React.createElement("p", null, "Count: ", count)
)

//The resulting Virtual DOM object (React Element)

{
  type: "div",
  props: {
    className: "card",
    children: [
      {
        type: "h2",
        props: { children: "Hello, React!" },
        key: null
      },
      {
        type: "p",
        props: { children: ["Count: ", 5] },
        key: null
      }
    ]
  },
  key: null
}

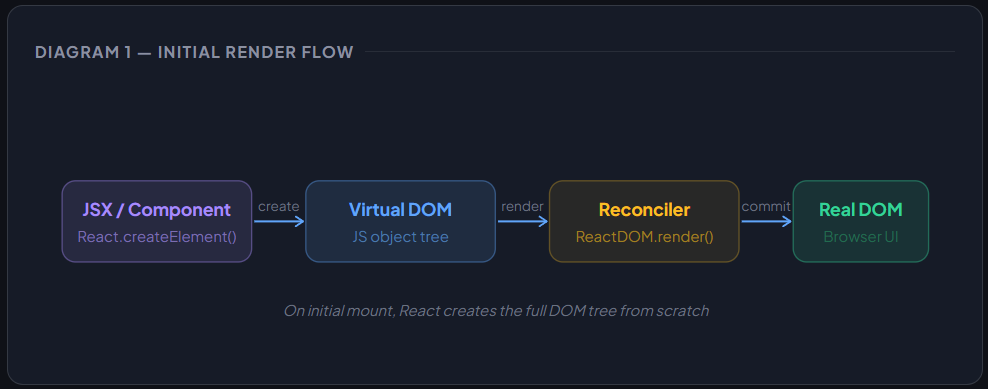

Initial render process in React

When React first mounts your app, it needs to build the UI from scratch. Here's the flow:

On initial render there is no previous Virtual DOM to compare against. React simply walks the Virtual DOM tree and creates real DOM nodes for each element — document.createElement(), setAttribute(), appendChild(), and so on. This is the only time React creates DOM nodes from scratch in a single pass.

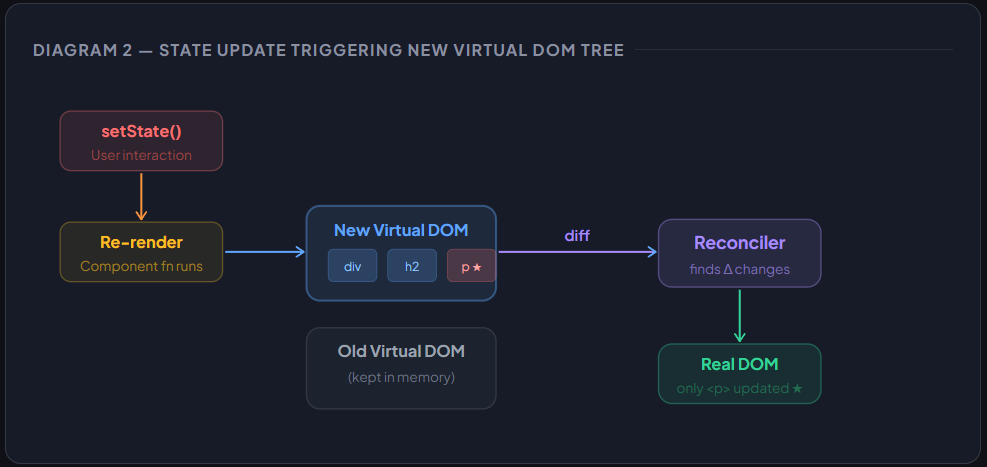

How state or props change triggers re-render

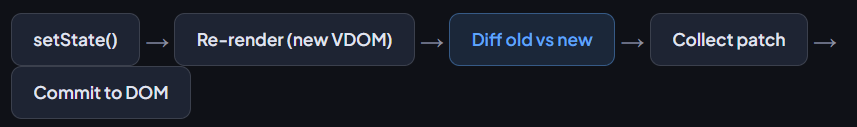

Here's where things get interesting. When you call setState() or a parent re-renders a child with new props, React doesn't immediately touch the DOM. Instead, it:

1️⃣ Marks the component as "dirty"

React schedules a re-render for the component whose state/props changed, plus all its descendants by default.

2️⃣ Calls the render function again

React re-invokes your component function (or render() method), producing a brand new Virtual DOM tree representing the updated UI.

3️⃣Holds both trees in memory

React now has the old Virtual DOM (what's currently on screen) and the new Virtual DOM (what should be on screen).

4️⃣Runs the diffing algorithm

React compares old vs new trees to find the minimum set of changes needed. This is called reconciliation.

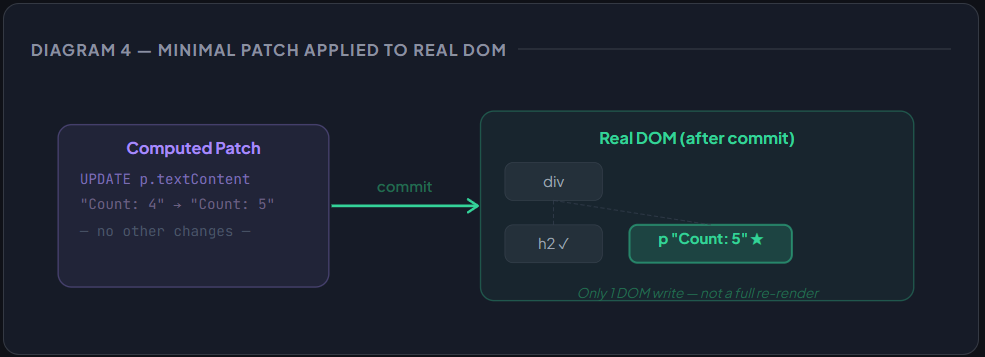

5️⃣Commits only the differences

React applies only the computed changes to the real DOM — not a full re-render.

How React finds minimal required changes

React's diffing algorithm works by walking both trees simultaneously — old and new — node by node. For each pair of nodes at the same position, it applies these rules:

Rule 1 — Type mismatch: If oldNode.type !== newNode.type (e.g., div → section), unmount the old subtree entirely, mount the new one.

Rule 2 — Same DOM element type: If types match (both div), keep the DOM node and only update changed attributes.

Rule 3 — Same component type: If types match (both <Counter />), keep the component instance (and its state!) and pass new props. Re-render is triggered if props changed.

Rule 4 — Key match in lists: React uses key to pair children between renders, allowing efficient reordering detection.

The Fiber Reconciler

What Fiber adds at a high level:

— Work units: Each component becomes a "fiber" node — a unit of work that can be paused, resumed, or abandoned.
— Priority scheduling: React can assign different priorities to updates. A keypress update can interrupt a slow animation update.
— Concurrent rendering: React can prepare a new tree "in the background" without committing it — the foundation for Suspense and useTransition.

The Virtual DOM diffing logic is the same. Fiber changes when and how that work gets scheduled — not the algorithm itself.

Why this approach improves performance

1️⃣ Batch DOM writes

Instead of scattered reads-then-writes that cause repeated reflows, React batches all DOM mutations into a single commit. This avoids layout thrashing entirely.

2️⃣Minimal DOM surface area

Only the nodes that actually changed get touched. The browser only needs to reflow/repaint the affected subtree, not the entire page.

3️⃣JavaScript is faster than DOM

Diffing two JavaScript objects is orders of magnitude cheaper than touching the DOM. React pays a small JS computation cost to avoid a much larger browser layout cost.

4️⃣Component identity preservation

When a component's type stays the same, React keeps the existing DOM node and component instance (with state). No unmount/remount means no lost state and no animation jank.

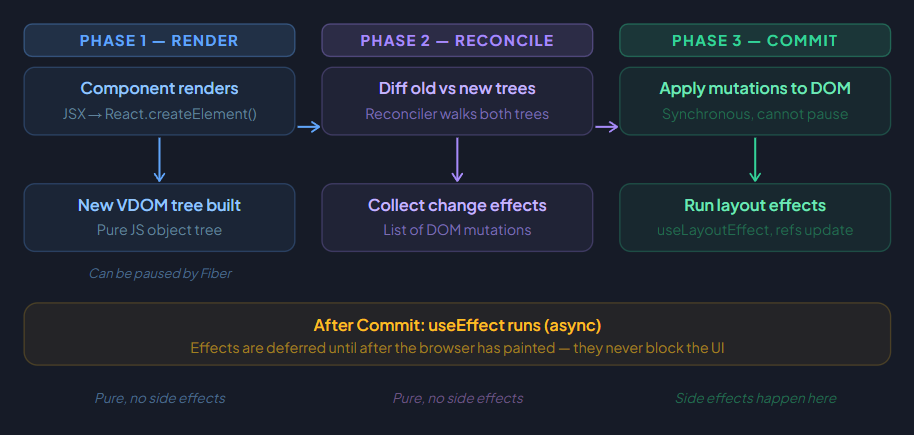

High-level overview of React render → diff → commit flow

Every React update goes through three distinct phases:

The render and reconcile phases are pure — they only compute things, never touch the browser. This is why Fiber can safely pause and resume them. The commit phase is synchronous and uninterruptible, because a half-applied DOM mutation would leave the UI in an inconsistent state.

Why This Actually Improves Performance

Concept	What it means	When it happens
React.createElement()	Creates a VDOM node (plain JS object)	Every render call
Reconciliation	Diffing old vs new VDOM to find changes	After every state/props update
Fiber	Unit of work; enables pausable rendering	React internals
Commit phase	Applying DOM mutations synchronously	After reconciliation
key prop	Stable identity for list items during diff	During list reconciliation
useLayoutEffect	Runs synchronously after DOM mutations	During commit phase
useEffect	Runs asynchronously after browser paint	After commit + paint
